Level & Flow Solution

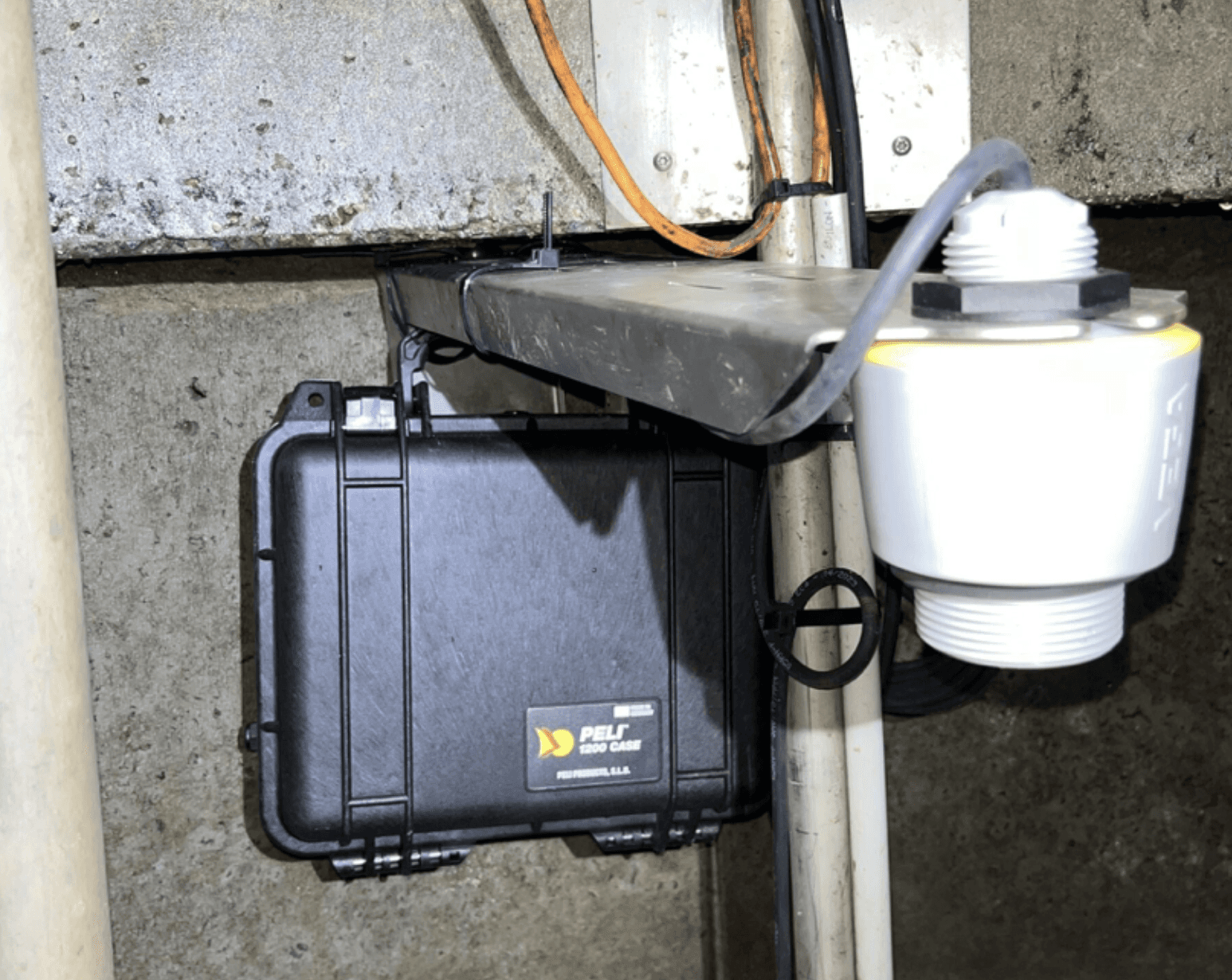

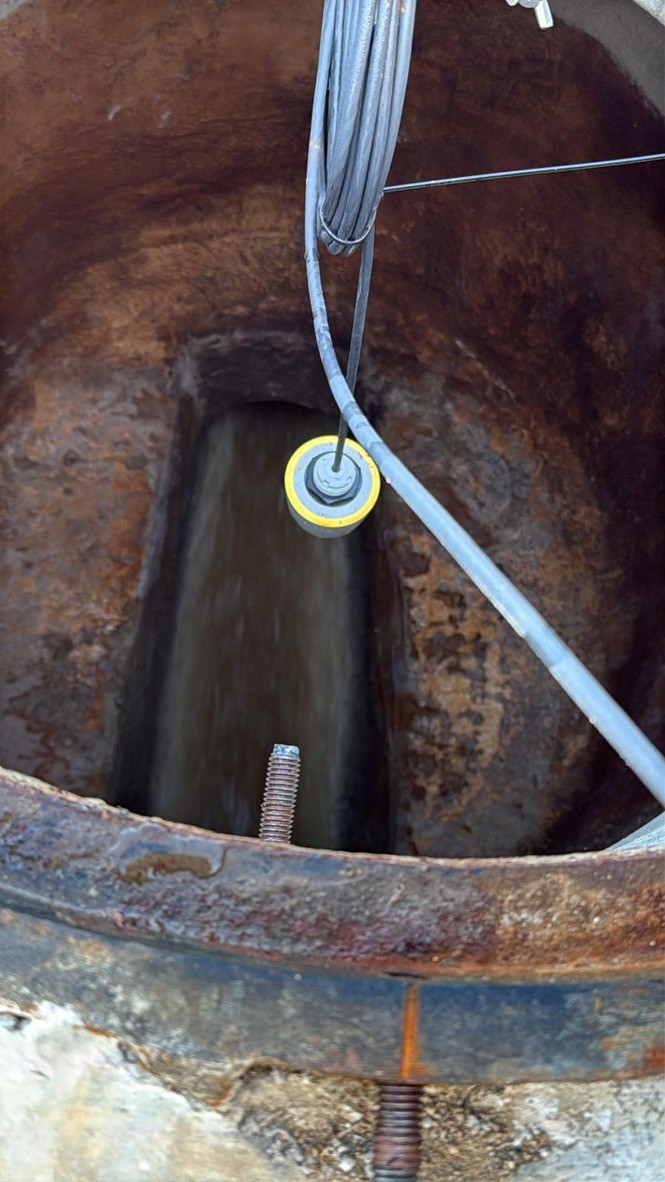

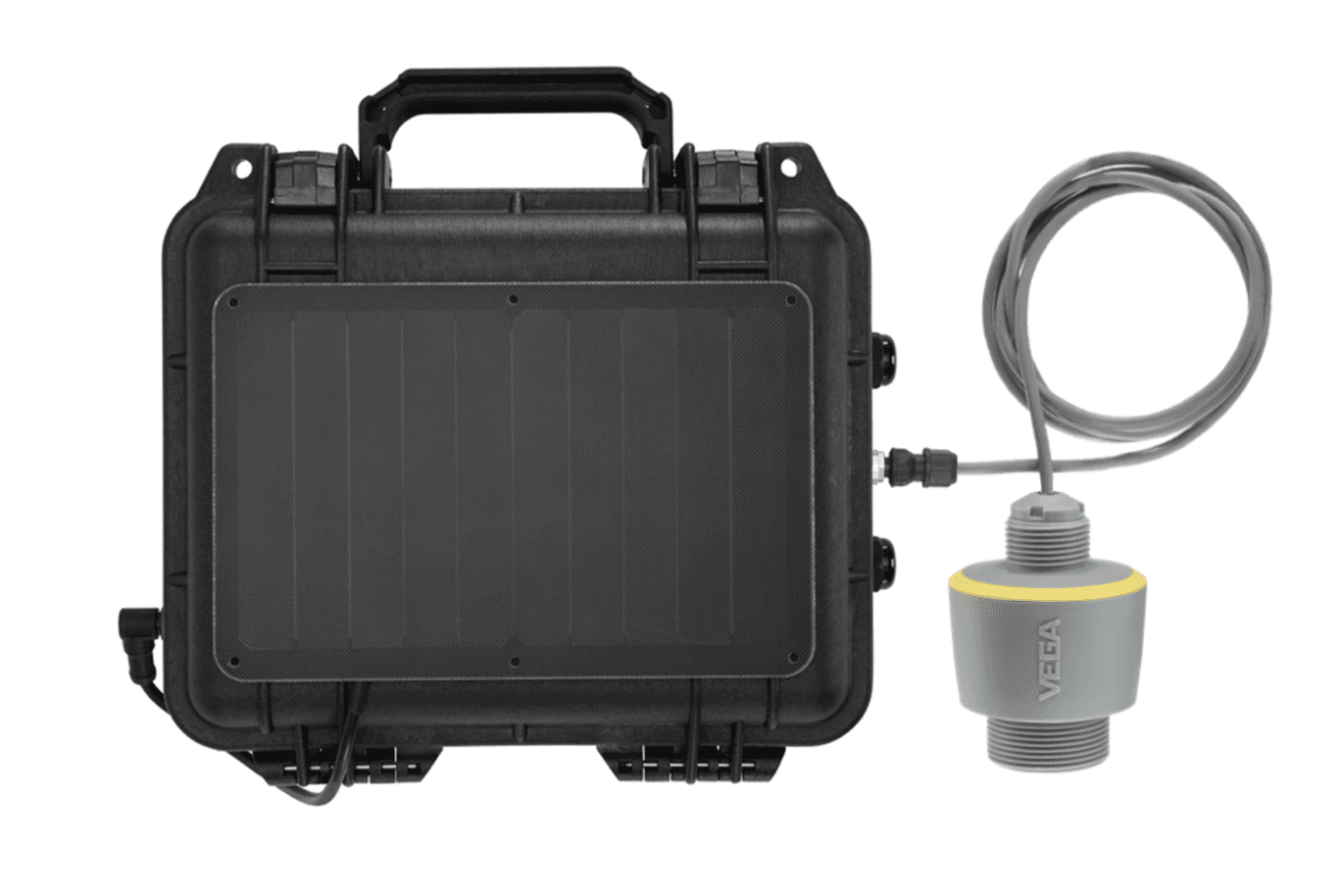

The Level & Flow Solution is built around the VEGA C21 non-contact radar sensor for accurate level measurement in sewer and stormwater systems. The compact design makes it easy to install even in confined spaces, and the narrow beam angle ensures reliable readings in complex geometries.

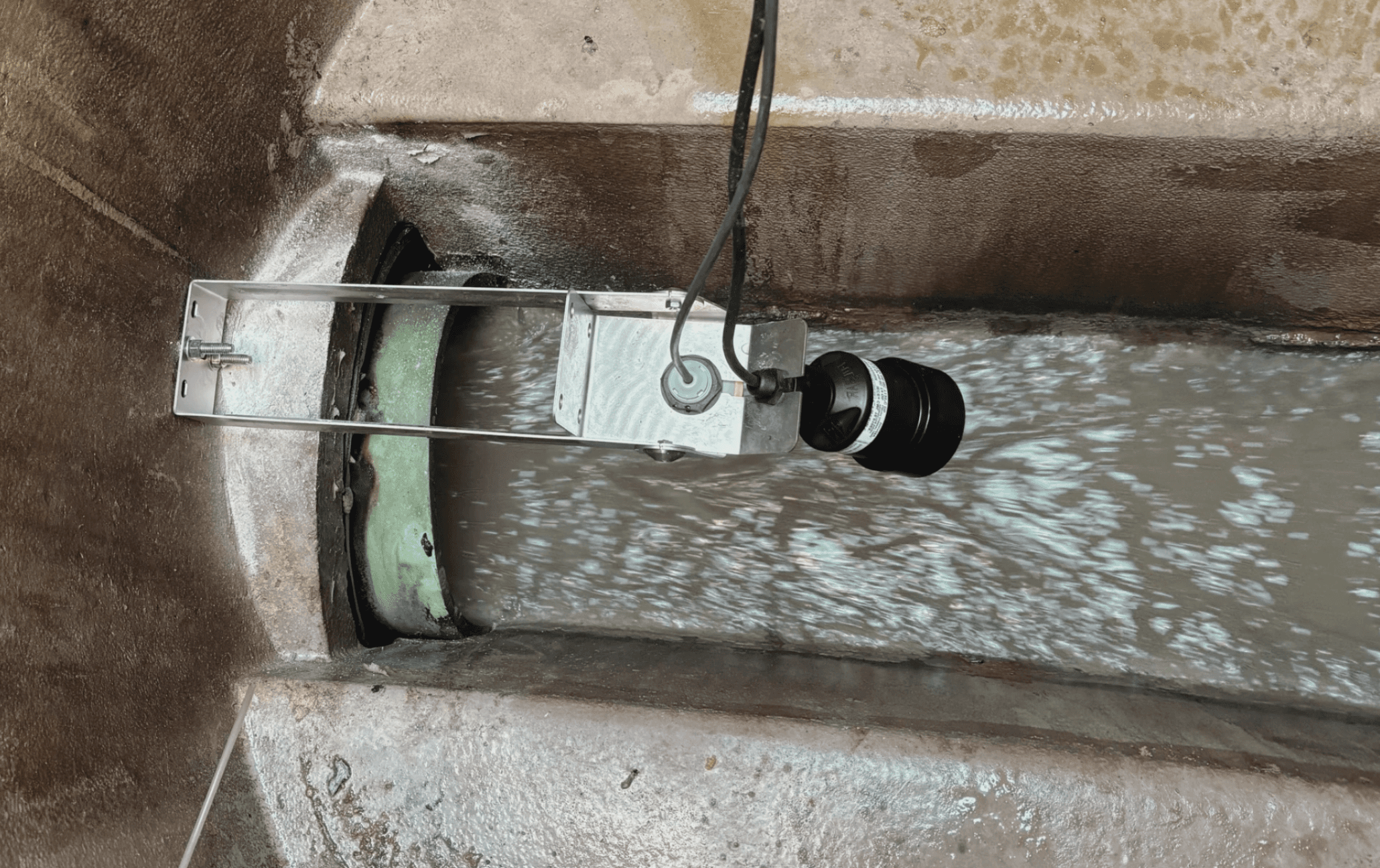

For applications requiring precise flow measurements — such as billing, hydraulic modelling, or regulatory reporting — the system can be equipped with an optional Pulsar MicroFlow surface velocity sensor. Combining level and velocity enables accurate real-time flow calculations even in challenging conditions.

All data is logged and transmitted automatically to the cloud, allowing operators to monitor system behaviour and receive alarms on abnormal conditions.

Selected Highlights

• Flexible mounting options

• Level accuracy: ± 0.079 in | ± 2 mm

• Level measurement range: 50 ft | 15 m

• Optional addition of MicroFlow Area Velocity Sensor

• Surface Velocity range: 0.98 ft/s - 19.7 ft/s | 0.3 m/s to 6 m/s

• Surface Velocity accuracy: The greater of ±0.5% or 2 in/s (50 mm/s)

• Cellular: LTE Cat-M1, NB-IoT (option for satellite)

• Cellular: Automatic selection of the best network based on coverage

• Expected Lifetime 10 years

• Battery life 1–2 years depending on configuration

• Free lifetime over-the-air updates

• Encrypted, NIS2-compliant data transmission

• Security: TLS 1.3 Protocol

• Direct SRO/SCADA integration

• Real-time flow & level measurements

• User-friendly setup, no programming required

Select the Datalogger that fits your setup

LoggerPro Series

• Modular architecture with multiple expansion ports (RS485, RS232, SDI-12, 4–20 mA, 0–10 V, digital I/O)

• Supports permanent power (24 V DC or 6 V solar) and battery operation

• Compact enclosure with DIN rail mounting option or optional rugged Peli enclosure

• Suitable for complex multi-sensor installations or continuous operation

Logger WD-68

• Integrated rugged ABS/TPU enclosure

• Three parallel I/O ports (RS485, SDI-12, 4–20 mA, pulse counter, 3.3 V/12 V outputs)

• Battery-powered only (hot-swappable dual battery slots, optional Li-SOCl₂ packs for >5 years standby)

• Optimized for long-term field deployments with minimal maintenance

Logger 4-WD

• Same electronics and I/O as Logger WD-68

• Compact LoggerPro-style enclosure with DIN rail mounting

• Optional rugged Peli enclosure

• Battery-powered, designed for panel-mounted or enclosed installations
